GULF COAST DEPOSITS

Donald Kenney (donaldkenney@gmail.com)
Last Update: Thu Sep 1 07:38:03 2016



Introduction

The origin of the Gulf of Mexico is not well understood. It appears that it developed during the Early to Mid Mesozoic as Modern North America separated from the supercontinent of Pangea. Structurally it seems to be a deep basin that has partially formed by depression of the same Permian and Triassic beds exposed in at the Western edge of the great plains in Texas, Oklahoma, Kansas, and New Mexico. Its Southern portion is a deep sea bottom formed as South America moved away to the South and later mostly closed off by material moved in from the West by plate tectonics. At it's deepest point, the Gulf of Mexico is more than four kilometers deep.

Although Jurassic beds are found subsurface in the Western Gulf, they are rarely, if ever, exposed. On the surface Lower Cretaceous through modern sediments ring the Gulf with the older sediments found inland and more recent sediments laid down in belts as one approaches the coast. Cretaceous sediments are found up the Mississippi valley as far North as Southern Illinois. Much more extensive deposits associated with a mid-Cretaceous sea that ran from the Gulf to the Arctic are found further West and are covered in the discussion of the Mid-Continent Sea Terrane.

The Rocks

I have included Georgia in both the GULF and ATLANTIC Margin Terranes. Gerogia includes sequences using both GULF and ATLANTIC terminology. On the West, Texas includes large areas of Cretaceous rock that merges cleanly into GULF formations on the East. But further to the West, the Cretaceous rocks become more similar to those of the MID-CONTINENT Terrane.

"Gulf Terrane" Formations in Georgia

Age Formation
Pleistocene See Recent
Miocene Altamaha-Miccosukee
Miocene Chatahoochee
Oligocene Suwanee
Oligocene Irwinton_barnwell-Glendon
Oligocene Irwinton_barnwell-Marianna
Eocene Irwinton_barnwell-Ocala Limestone-Cooper-Sandersville
Eocene Irwinton_barnwell-Ocala Limestone-Twiggs Clay
Eocene Irwinton_barnwell-Ocala Limestone-Tivola
Eocene Irwinton_barnwell Sand-Ocala Limestone-Clinchfield
Eocene Lisbon-McBean-Claiborne
Eocene Tallahatta
Eocene Tuscahoma
Eocene Hatchitigbee
Eocene Nanfalia
Paleocene Huber
Paleocene Porters Creek Clay
Paleocene Clayton
Cretaceous,Upper Providence
Cretaceous,Upper Ripley
Cretaceous,Upper Cusseta sand
Cretaceous,Upper Bluffton
Cretaceous,Upper Eutaw
Cretaceous,Upper Tuscaloosa

Limestone Fossiliferous

"Gulf Terrane" Formations in Alabama

Age Formation
Pleistocene See Recent
Pliocene Citronelle
Miocene Catahoula
Miocene Paynes Hammock
Oligocene Chickasawhay
Oligocene Byram
Oligocene Marianna
Oligocene Red Bluff-Bumpnose
Eocene Yazoo
Eocene Moodys Branch
Eocene Gosport
Eocene Lisbon
Eocene Tallahatta
Eocene Hatchitigbee
Eocene Tuscahoma
Eocene Nanfalia
Paleocene Naheola
Paleocene Porters Creek Clay
Paleocene Clayton
Cretaceous,Upper Prairie Bluff Chalk
Cretaceous,Upper Providence
Cretaceous,Upper Ripley
Cretaceous,Upper Demopolis-Cusseta Sand
Cretaceous,Upper Mooreville
Cretaceous,Upper Bluffton
Cretaceous,Upper Eutaw
Cretaceous,Upper Tuscaloosa

Limestone Fossiliferous

"Gulf Terrane" Formations in Mississippi

Age Formation
Pleistocene See Recent
Pleistocene Prairie
Pleistocene Montgomery
Pleistocene Bentley
Pliocene Citronelle
Miocene Pascagoula
Miocene Hattiesburg
Miocene Catahoula
Miocene Paynes Hammock
Oligocene Chickasawhay
Oligocene Byram
Oligocene Mint Spring
Oligocene Forest Hill Sand-Red Bluff Clay
Eocene Yazoo
Eocene Moodys Branch
Eocene Cook Mt(Cockfield)
Eocene Cook Mt(Gordon Creek Shale)
Eocene Cook Mt(Potterchitto)
Eocene Cook Mt(Archusa marl)
Eocene Claiborne(Kosciusko)
Eocene Claiborne(Zilpha Clay)
Eocene Claiborne(Winona Sand)
Eocene Claiborne(Tallahatta)
Eocene Wilcox(Hatchitigbee)
Eocene Wilcox(Tuscahoma)
Eocene Wilcox(Nanfalia |)
Paleocene Betheden-Naheola
Paleocene Mathews Landing
Paleocene Porters Creek Clay
Paleocene Clayton
Cretaceous,Upper Owl Creek Marl-Prairie Bluff Chalk
Cretaceous,Upper Selma-Ripley
Cretaceous,Upper Selma-Demopolis
Cretaceous,Upper Coffee Sand-Mooreville
Cretaceous,Upper McShan-Eutaw
Cretaceous,Upper Tuscaloosa

Limestone Fossiliferous

"Gulf Terrane" Formations in Missouri,Arkansas,SouthEast Oklahoma

Age Formation
Pleistocene See Recent
Eocene Jackson
Eocene Claiborne
Eocene Wilcox
Paleocene Midway(Porters Creek Shale)
Paleocene Midway(Clayton)
Cretaceous,Upper Navarro(Arkadelphia Marl)
Cretaceous,Upper Navarro(Nacatoch Sand)
Cretaceous,Upper Navarro(Saratoga Chalk)
Cretaceous,Upper Taylor(Marlbrook Marl)
Cretaceous,Upper Taylor(Annona Chalk)
Cretaceous,Upper Taylor(Ozan)
Cretaceous,Upper Taylor(Brownstown Marl)
Cretaceous,Upper Austin(Tokio Sand-Eagle Ford)
Cretaceous,Upper Woodbine
Cretaceous,Lower Washita(Grayson)
Cretaceous,Lower Washita(Mainstreet)
Cretaceous,Lower Washita(Pawpaw Shale)
Cretaceous,Lower Washita(Weno)
Cretaceous,Lower Washita(Denton)
Cretaceous,Lower Washita(Fort Worth)
Cretaceous,Lower Washita(Duck Creek)
Cretaceous,Lower Washita(Kiamichi)
Cretaceous,Lower Fredricksburg(Goodland)
Cretaceous,Lower Fredricksburg(Paluxy)
Cretaceous,Lower Trinity(Mooringsport Anhydrite)
Cretaceous,Lower Trinity(Ferry Lake Anhydrite)
Cretaceous,Lower Trinity(Rodessa)
Cretaceous,Lower Trinity(Pine Island Shale)
Cretaceous,Lower Trinity(Sligo)
Cretaceous,Lower Coahuila(Hosston)
Jurassic Cotton Valley
Jurassic Bohner
Jurassic Smackover
Jurassic-Triassic Eagle Mills Sandstone

Limestone Fossiliferous

"Gulf Terrane" Formations in Tennessee,Kentucky,Illinois

Age Formation
Pleistocene See Recent
Eocene Jackson
Eocene Claiborne
Eocene Wilcox
Paleocene Midway(Porters Creek Clay)
Paleocene Midway(Clayton)
Cretaceous,Upper Navarro(Owl Creek Marl)
Cretaceous,Upper Navarro(McNairy Sand)
Cretaceous,Upper Navarro(Coon Creek)
Cretaceous,Upper Navarro(Demopolis)
Cretaceous,Upper Navarro(Sardis Sand)
Cretaceous,Upper Taylor(Coffee Sand)
Cretaceous,Upper Austin(Eutaw)
Cretaceous,Upper Woodbine(Tuscaloosa)

Limestone Fossiliferous

"Gulf Terrane" Formations in Lousiana

Age Formation
Pleistocene See Recent
Pleistocene Prairie
Pleistocene Montgomery
Pleistocene Bentley
Pliocene? Williana
Miocene Fleming
Miocene Catahoula
Oligocene Nash Creek Clay-Rosenfeld
Oligocene Sandel Sand
Oligocene Mosely Hill-Byram
Oligocene Glendon
Oligocene Mint Spring
Oligocene Forest Hill Sand
Eocene Danville Landing
Eocene Yazoo
Eocene Moodys Branch
Eocene Claiborne(Cockfield)
Eocene Claiborne(Cook Mountain)
Eocene Claiborne(Sparta Sand)
Eocene Claiborne(Cane River)
Eocene Wilcox(Carrizo Sand)
Eocene Wilcox(Sabinetown)
Paleocene Wilcox(Pendleton)
Paleocene Wilcox(Marthaville)
Paleocene Wilcox(Hall Summit)
Paleocene Wilcox(Logansport)
Paleocene Wilcox(Naborton)
Paleocene Midway(Porters Creek)
Paleocene Midway(Clayton)

Limestone Fossiliferous

"Gulf Terrane" Formations in South and East Texas

Age Formation
Pleistocene See Recent
Pleistocene Deweyville
Pleistocene Beaumont
Pleistocene Lissie - Montgomery
Pleistocene Lissie - Bentley
Pleistocene Willis
Pliocene Citronelle
Pliocene Goliad?
Miocene Lagarto
Miocene Fleming
Miocene Oakville
Miocene? Anahuac
Miocene? Catahoula
Miocene? Frio
Oligocene Whitsett
Oligocene? McElroy(Manning)
Oligocene? McElroy(Wellborn)
Eocene? Caddell-Moodys Branch
Eocene Claiborne(Yegua-Cockfield)
Eocene Claiborne(Laredo-Cook Mountain)
Eocene Claiborne(Laredo-Stone City)
Eocene Claiborne(Laredo-Sparta Sand)
Eocene Claiborne(Mount Selman-Weches)
Eocene Claiborne(Mount Selman-Queens City Sand)
Eocene Claiborne(Mount Selman-Reklaw)
Eocene Wilcox(Carrizo Sand)
Eocene Wilcox(Calvert Bluff-Sabinetown)
Eocene Wilcox(Simsboro Sand-Rockdale)
Eocene? Wilcox(Pendleton)
Paleocene Midway-Wilcox)(Hooper-Seguin)
Paleocene Midway(Wills Point)
Paleocene Midway(Kincaid)
Cretaceous,Upper Navarro(Escondido Shale,-Kemp)
Cretaceous,Upper Navarro(Corsicana)
Cretaceous,Upper Navarro(Olmos-Nacatockt-Bergstrom)
Cretaceous,Upper Taylor(San Miguel-Marlbrook)
Cretaceous,Upper Taylor(Anacocho-Annona-Pecan Gap)
Cretaceous,Upper Taylor(Annona-Wolfe City)
Cretaceous,Upper Taylor(Upson-Ozan)
Cretaceous,Upper Taylor?(Pflugerville )
Cretaceous,Upper Austin(Gober)
Cretaceous,Upper Austin(Brownstown)
Cretaceous,Upper Austin(Tokio-Blossom)
Cretaceous,Upper Austin(Tokio-Bonham)
Cretaceous,Upper Eagle Ford(Boquelias-South Bosque)
Cretaceous,Upper Eagle Ford(Lake Waco)
Cretaceous,Upper Woodbine(Pepper Shale)
Cretaceous,Lower Washita(Buda)
Cretaceous,Lower Washita(Grayson-Del Rio Clay)
Cretaceous,Lower Washita(Mainstreet)
Cretaceous,Lower Washita(Pawpaw)
Cretaceous,Lower Washita(Weno-Georgetown)
Cretaceous,Lower Washita(Denton)
Cretaceous,Lower Washita(Fort Worth)
Cretaceous,Lower Washita(Duck Creek)
Cretaceous,Lower Washita(Kiamichi)
Cretaceous,Lower Fredricksburg(Salmon Peak)
Cretaceous,Lower Fredricksburg(Salmon Peak-McKnight-Devils River-Goodland-Edwards)
Cretaceous,Lower Fredricksburg(West Hurces-Comanche Peak)
Cretaceous,Lower Fredricksburg(Walnut)
Cretaceous,Lower Trinity(Paluxy-Glen Rose)
Cretaceous,Lower Trinity(Hensel)
Jurassic Schuler
Jurassic Cotton Valley Shale
Jurassic Bohner
Jurassic Haynesville-Bossier Shale
Jurassic Buckner Anhydrite
Jurassic Smackover Limestone
Jurassic Norphlet Mudstone
Jurassic Louann Salt
Jurassic Werner Anhydrite
Jurassic-Triassic Eagle Mills Sandstone

Limestone Fossiliferous

Maps and Figures

Geologic Maps


Georgia High Resolution map

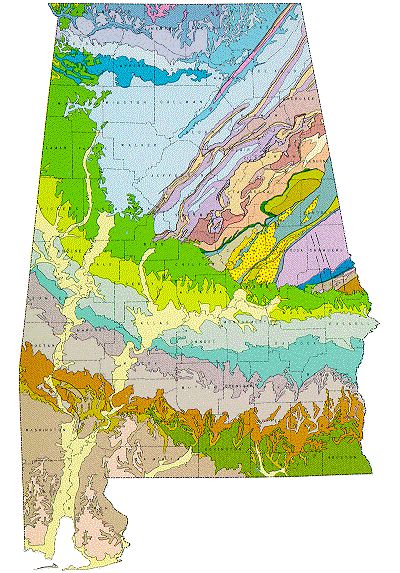

Alabama High Resolution map

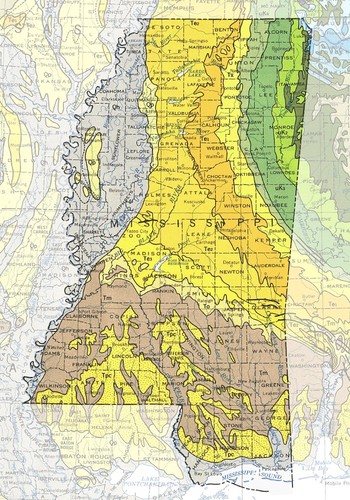

Mississippi High Resolution map


Tennessee High Resolution map


Kentucky High Resolution map


Illinois High Resolution map


Missouri High Resolution map


Arkansas High Resolution map


Oklahoma High Resolution map


Louisiana High Resolution map


Texas High Resolution map


Formations

See Rocks


References

https://en.wikipedia.org/wiki/Gulf_of_Mexico

http://mrdata.usgs.gov/geology/state/fips-unit.php?state=MS

[http://web.archive.org/web/20091231184415/http://fossilsoftexas.webs.com/]

Petroleum Geology of South Arkansas and the Gulf Coastal Plain http://www.geology.arkansas.gov/energy/oil_prodarea.htm
